800559

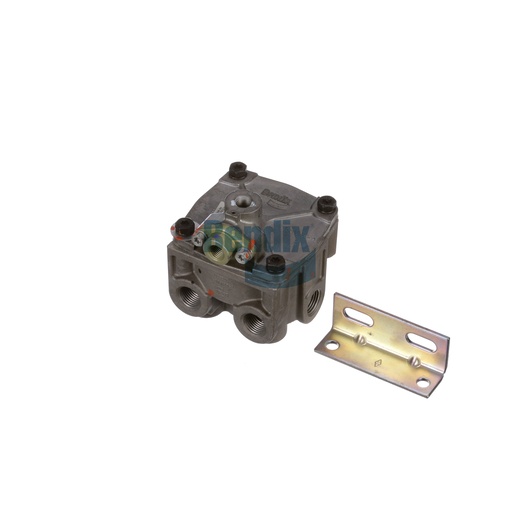

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is an essential part of your truck's air brake system, designed to improve the efficiency and responsiveness of your braking operations. It regulates the air pressure distributed to the brake chambers, ensuring that the braking force is applied evenly across all wheels. This valve is built with high-quality materials to withstand the rigors of heavy-duty use, providing consistent performance in diverse operating conditions. By maintaining optimal air pressure levels, the Relay Valve enhances braking safety and reduces wear on brake components, ultimately extending their lifespan. This part is crucial for ensuring that your vehicle can respond effectively in emergency situations, maintaining control and stability. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the leading choice, offering reliable components that fit your vehicle perfectly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
100.6 mm (3.96 in)
Length
108.2 mm (4.26 in)
Height
130.3 mm (5.13 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Mounting
Ø .531 IN (4x)
Weight
3.28 lb
