800625
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

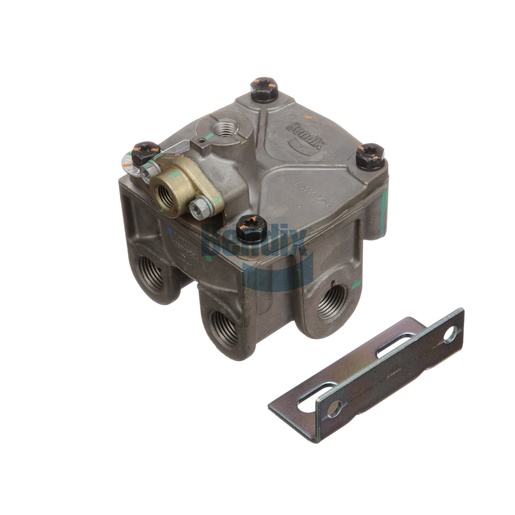

The Relay Valve from Bendix plays a critical role in the air brake system by controlling air flow to the brakes, enhancing both safety and responsiveness. Its robust design features a dual supply and delivery port configuration that allows for efficient air management, crucial for maintaining optimal braking performance. With a crack pressure of 7.5 PSI, this valve ensures that air pressure is managed effectively, enabling quicker response times during braking. Built to endure the harsh conditions of commercial vehicle operation, this relay valve is lightweight yet durable, weighing just under 3 pounds. Its temperature tolerance ranges from -40 °F to 200 °F, making it versatile for various applications. For reliable and high-quality components, Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, ensuring your vehicle operates at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
2.87 lb
