$159.95
$191.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

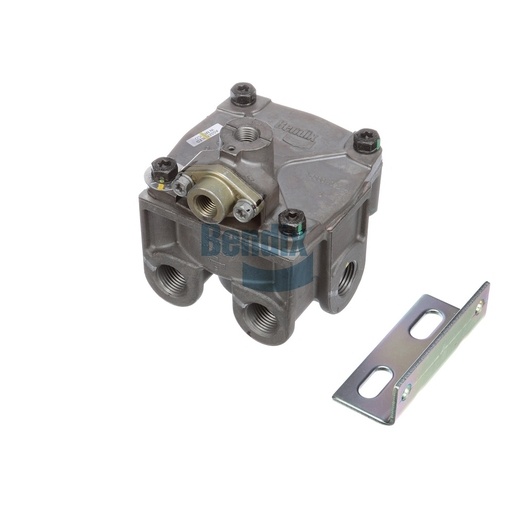

The Relay Valve is an integral part of the Bendix air brake system, essential for regulating air pressure within the braking components. This valve is designed for durability and reliability, helping to ensure that the correct air pressure is supplied to the brake chambers for effective braking action. Weighing 1.3 kg, this robust component can withstand the challenging conditions often encountered in commercial trucking. Its efficient design minimizes leakage and optimizes air delivery, contributing to enhanced safety and performance. By incorporating this genuine Bendix relay valve into your braking system, you ensure consistent and reliable braking performance. For high-quality Bendix parts, Source One Parts Center is your trusted source, providing a wide selection of authentic OEM components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.76 lb
