800677

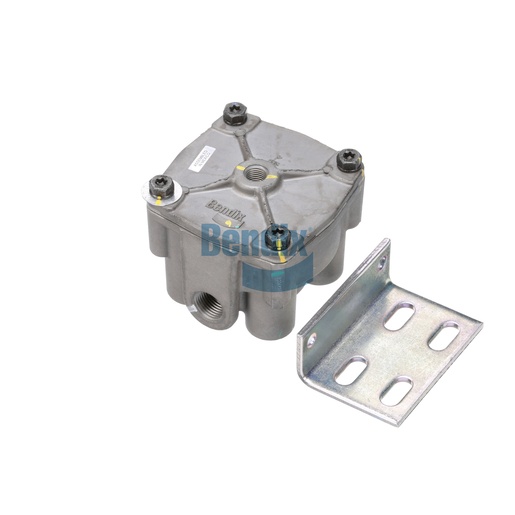

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize your vehicle's air brake system with the Bendix Relay Valve, designed to ensure efficient air flow and control. This valve is engineered for reliability and precision, providing quick response times that are crucial for effective braking. With a robust design that can withstand high pressures and varying temperatures, it is suitable for a range of heavy-duty applications. Its compact size allows for easy installation and maintenance, making it a practical choice for fleet operators. The Bendix Relay Valve is essential for maintaining optimal braking performance and vehicle safety. When you choose Source One Parts Center, you can be confident that you are purchasing genuine Bendix OEM parts, ensuring the best quality for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.93 lb
