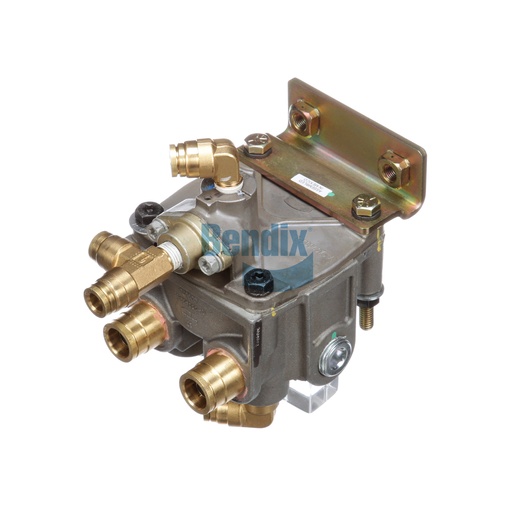

801059
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a critical component in the air brake system of commercial vehicles, ensuring efficient brake operation and responsiveness. This valve is designed to regulate airflow in the brake system, providing precise control when engaging and releasing the brakes. Manufactured in Mexico, it features a durable design that can withstand harsh operating conditions, with a maximum operating temperature of 200°F and a minimum of -40°F. Its compact size and user-friendly installation make it a preferred choice among fleet operators looking to enhance their vehicle's braking performance. The relay valve's reliability contributes to overall safety, allowing for smoother stops and improved control, especially in heavy-duty applications. For genuine Bendix parts, Source One Parts Center is your trusted source, offering the highest quality components to keep your fleet running safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2 PTC
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT x 5/8 PTC (90° Elbow)
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Height
121.0 mm (4.76 in)
Width
133.5 mm (5.26 in)
Length
144.0 mm (5.67 in)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8 PTC (90° Elbow)
Delivery Port 4
3/8-18 NPT
Mounting
3/8-24 UNF-2B Nut (2x)
Crack Pressure
4.0 PSI
Delivery Port 2
5/8 PTC
Harmonized System (HS) Code
848120
Mounting Bracket Location
Above Cover
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
4.17 lb
