$184.95
$221.94
FINAL SALE. No returns or exchanges.

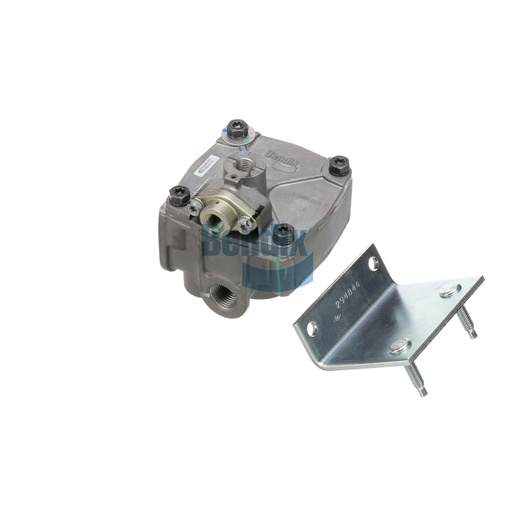

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a crucial component in air brake systems, enabling efficient and reliable brake operation. Designed for robust performance, this valve facilitates the quick transmission of air pressure from the brake pedal to the brake chambers, ensuring responsive braking when needed. With a maximum operating temperature of 200°F and the ability to withstand extreme conditions, the relay valve is engineered for durability and reliability in demanding environments. Its configuration allows for multiple delivery ports, providing flexibility for various applications. The valve's thoughtful design includes features such as a dust shield to protect against contaminants, ensuring long-lasting performance. This makes it an essential component for fleet operators looking to enhance safety and efficiency. For genuine Bendix OEM parts that guarantee quality and performance, Source One Parts Center is the best option, offering a comprehensive selection for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.48 lb
