801381

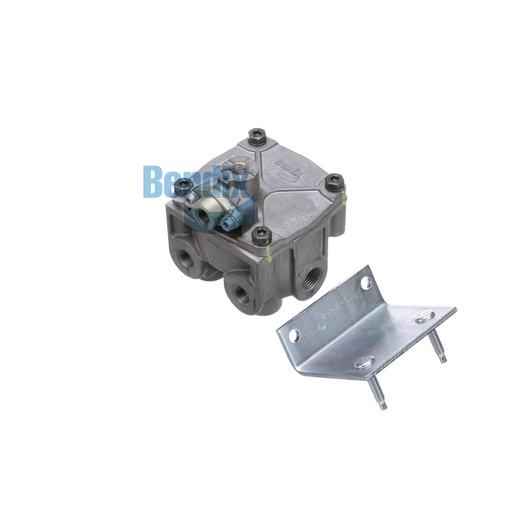

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve by Bendix plays a pivotal role in your truck's air brake system, facilitating quick and efficient brake response. Designed to manage the air pressure effectively, this valve ensures that the brake system responds accurately to driver inputs, providing enhanced control and safety. Its robust construction is engineered to withstand harsh environments, ensuring longevity and reliable operation in demanding conditions. The compact design allows for easy installation, making it a practical choice for fleet maintenance. By ensuring that the air supply is delivered efficiently to the brake chambers, the Relay Valve enhances overall braking performance, improving safety for drivers and cargo alike. For high-quality, genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring that you receive components that meet the highest standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
102.0 mm (4.02 in)
Length
108.0 mm (4.25 in)
Height
121.0 mm (4.76 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.31 lb
