801839

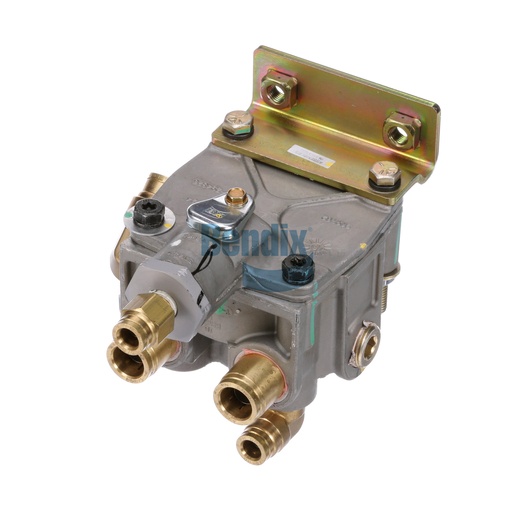

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is a critical component for ensuring optimal air distribution within your vehicle's braking system. Designed to enhance safety and performance, this valve regulates air pressure to the brakes, providing responsive and reliable stopping power. Its robust construction ensures durability and longevity, making it an essential part for maintaining the integrity of your air brake system. The Relay Valve is easy to install, compatible with a variety of truck models, and essential for achieving the best braking performance possible. For sourcing genuine Bendix parts, Source One Parts Center is your best choice, offering authentic components that ensure your commercial vehicles operate at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Supply Port 1
1/2-14 NPT (Plugged)
Supply Port 2
1/2-14 NPT x 5/8 PTC (90° Elbow)
Delivery Port 1
1/2-14 NPT x 5/8 PTC (Straight)
Delivery Port 2
1/2-14 NPT x 5/8 PTC (Straight)
Control / Secondary Service Port
1/4-18 NPT x 3/8 PTC (Straight)
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 4
3/8-18 NPT (Plugged)
Delivery Port 3
3/8-18 NPT x 3/8 PTC (90° Elbow)
Mounting
3/8-24 UNF-2B Nut (2x)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Mounting Bracket Location
Above Cover
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
4.2 lb
