803166
Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

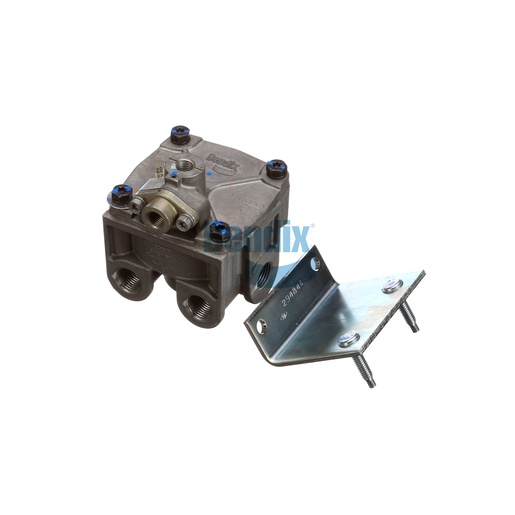

The Bendix Relay Valve is engineered to enhance the efficiency and safety of your air brake system. This R-12DC relay valve plays a critical role in controlling the air flow to the brake chambers, ensuring that your brakes engage smoothly and reliably. Designed for heavy-duty applications, this valve boasts a compact design and lightweight construction, weighing only 1.5 kg (3.2 lb), making it easy to install in tight spaces. Its robust construction ensures reliable performance in extreme temperatures, from -40°F to 200°F, allowing for consistent operation in various climate conditions. The relay valve features multiple ports for easy integration into your air braking system, streamlining the installation process. With Source One Parts Center, you can be confident that you are purchasing genuine Bendix OEM parts, which are backed by the manufacturer’s quality assurance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.2 lb
