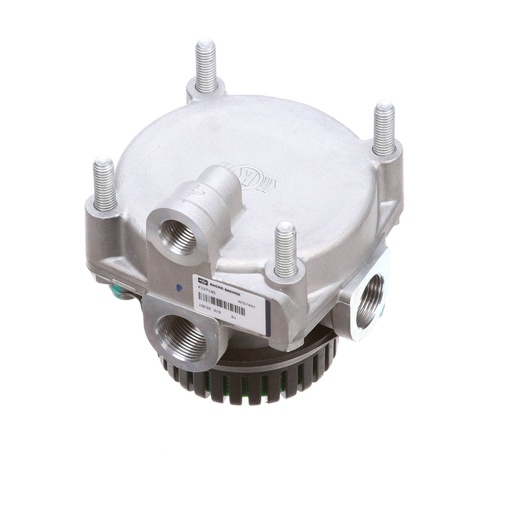

AC574AY
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This advanced relay valve for Bendix air brake systems is designed to optimize the performance of your vehicle's braking system. Weighing only 0.8 kg (1.65 lb), this valve is engineered with precision to ensure reliable air delivery and control, essential for maintaining safety in heavy-duty driving conditions. Its compact design includes an internal silencer, reducing noise while enhancing efficiency. This relay valve is a critical component in ensuring your braking system functions smoothly and effectively. For genuine Bendix OEM parts, trust Source One Parts Center to provide you with the highest quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-010-009: Relay Valve - Air Brake
Length
101.0 mm (3.98 in)
Width
107.0 mm (4.21 in)
Height
114.0 mm (4.49 in)
Valve Ratio
1:1
Harmonized System (HS) Code
848120
Country of Origin
China
Air Signal port(s) size
M16x1,5
Air Delivery port(s) size
M22x1,5
Air Inlet port(s) size
M22x1,5
Application
Single
With internal Silencer
Yes
Weight
1.65 lb
