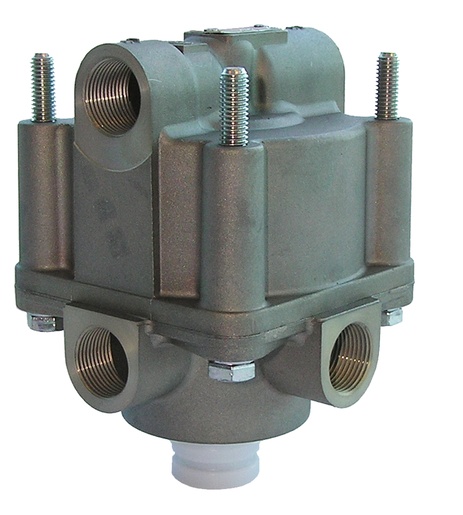

AC586AY
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your vehicle's braking system with the Bendix Relay Valve, designed for superior performance in air brake systems. This high-quality valve, weighing just 1.1 kg, features a 1:1 valve ratio and is engineered for efficient air delivery, ensuring optimal brake response. Manufactured in Italy, the Bendix Relay Valve is built to last, providing reliability and durability in demanding driving conditions. Its precision engineering allows for easy installation, making it an ideal choice for fleet maintenance or individual vehicle upgrades. The Bendix Relay Valve helps improve overall braking efficiency and safety, making it an essential component for any commercial vehicle. When looking for genuine Bendix OEM parts, Source One Parts Center is your trusted supplier, offering authentic products that ensure the highest quality and performance for your vehicles.
SPECIFICATIONS
VMRS
013-010-009: Relay Valve - Air Brake
Width
104.0 mm (4.09 in)
Height
147.0 mm (5.79 in)
Valve Ratio
1:1
Harmonized System (HS) Code
848120
Length
99.0 mm (3.9 in)
Country of Origin
Italy
Air Delivery port(s) size
M22x1,5
Air Inlet port(s) size
M22x1,5
Air Signal port(s) size
M22x1,5
With internal Silencer
No
Weight
2.34 lb
