$199.95
$239.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

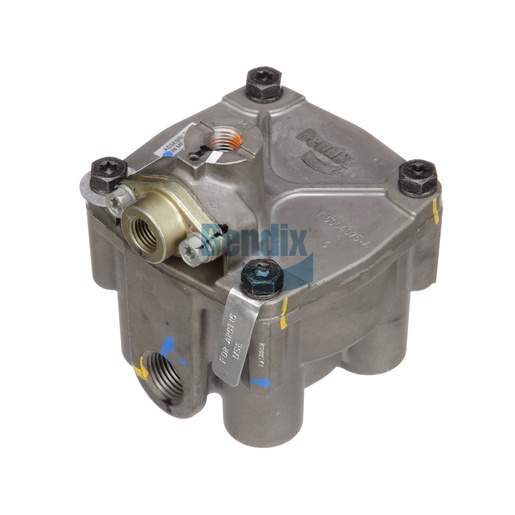

The Relay Valve from Bendix is an essential component of your vehicle's air brake system, designed to control air flow and improve braking efficiency. This valve features a robust design that allows it to operate effectively under the demanding conditions of commercial use, ensuring consistent performance. With multiple delivery ports and a crack pressure of 4.0 PSI, this relay valve optimizes air distribution for more responsive braking action, enhancing safety and control. The easy installation process minimizes downtime, allowing for quick repairs and maintenance. By investing in this Relay Valve, you're ensuring your vehicle operates at peak performance. Source One Parts Center is the best destination for acquiring genuine Bendix OEM parts, providing you with reliable components that guarantee quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
100.6 mm (3.96 in)
Length
114.6 mm (4.51 in)
Height
142.3 mm (5.6 in)
Maximum Operating Temperature
160 °F (71 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Barbed Snorkel - 1.00 IN Tube
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.37 lb
