K092888

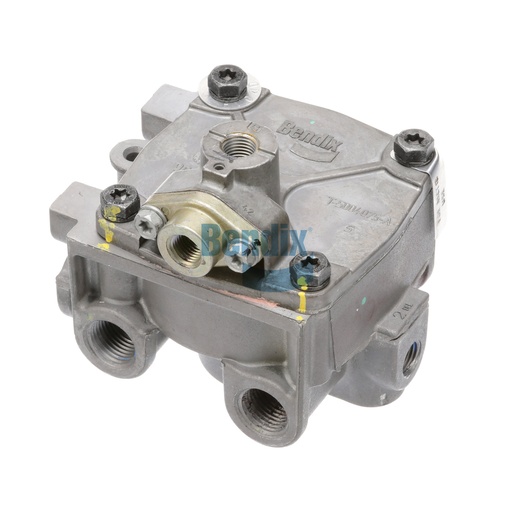

Relay Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a critical component in air brake systems, providing precise control over braking pressure and ensuring optimal performance. Engineered for reliability, this valve features a robust construction that can withstand extreme temperatures, ranging from -40°F to 200°F, making it suitable for various operational environments. With multiple delivery and supply ports, it allows for flexible installation and integration into your vehicle's braking system. The valve's crack pressure of 4.0 PSI ensures quick response times, contributing to enhanced safety and control during braking maneuvers. Ideal for heavy-duty applications, this relay valve is designed to meet the rigorous demands of commercial trucking. When it comes to sourcing quality parts, Source One Parts Center is your trusted destination for genuine Bendix OEM components that ensure your vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Delivery Port 5
1/4-18 NPT
Width
101.6 mm (4.0 in)
Length
124.7 mm (4.91 in)
Height
136.6 mm (5.38 in)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 5 DEL (5H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.61 lb
