This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

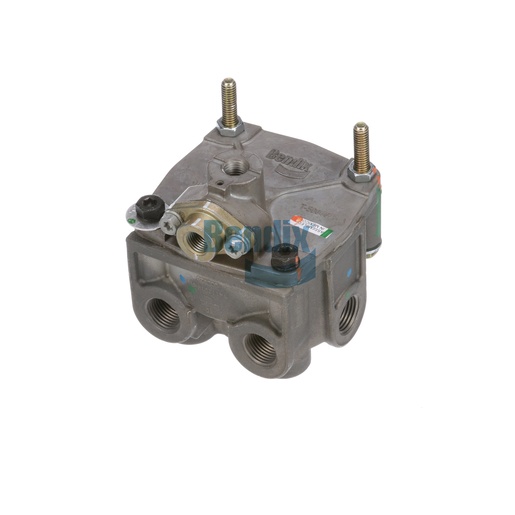

Bendix's Relay Valve is an essential element in the air brake system of commercial vehicles, ensuring precise control and responsiveness. This valve is designed to enhance the reliability of brake applications, providing a crucial link between the air supply and the braking mechanism. With dual supply ports and multiple delivery ports, it allows for efficient air distribution, ensuring that your brakes engage smoothly and effectively under various load conditions. The robust construction of this relay valve ensures that it can withstand harsh operating environments while maintaining its performance integrity. Featuring a maximum operating temperature of 200 °F and a minimum of -40 °F, it is built to perform reliably in diverse climates. For those in need of high-quality parts, Source One Parts Center is the premier destination for genuine Bendix OEM components, offering the assurance of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Mounting Bracket Direction
Up
Weight
2.6 lb
