This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

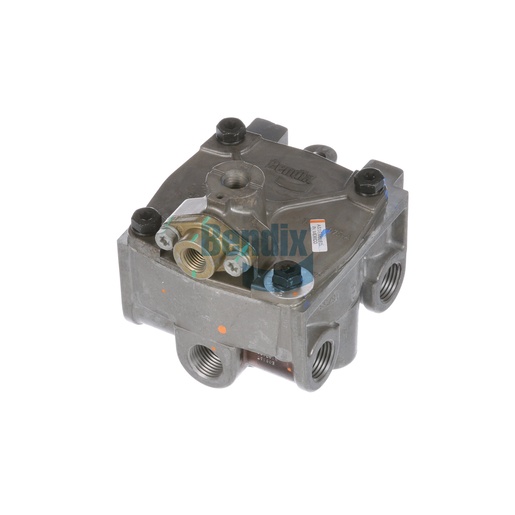

The Relay Valve from Bendix is a critical component in the air brake system, designed to provide efficient control over the delivery of air pressure to the brakes. This relay valve features a robust construction, ensuring longevity and reliability in demanding commercial applications. With a maximum operating temperature of 200°F and a minimum of -40°F, it can perform effectively in a wide range of conditions. The valve's compact design allows for easy installation, and its multiple delivery ports facilitate versatile configurations suitable for various vehicle setups. This component is essential for maintaining optimal braking performance and safety on the road. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the top choice, offering quality products and exceptional service for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
102.0 mm (4.02 in)
Height
122.0 mm (4.8 in)
Length
124.0 mm (4.88 in)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.89 lb
