This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

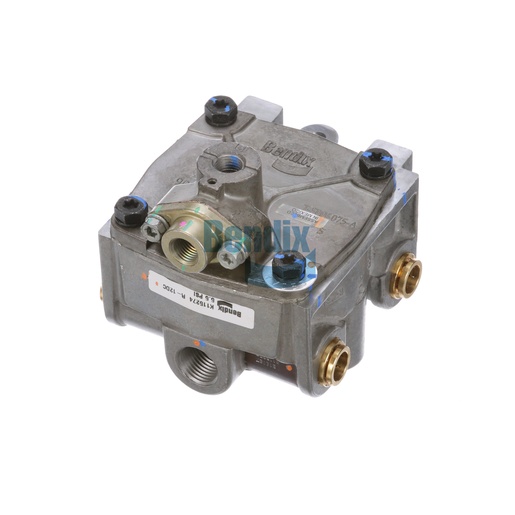

The Relay Valve from Bendix is an integral part of the air brake system, designed for precision air management that enhances overall braking performance. This valve features a compact design with multiple ports for efficient air supply and delivery, ensuring that your vehicle's braking system responds accurately and quickly. With a maximum operating temperature of 200°F and a crack pressure of 5.5 PSI, it is built to endure the rigors of heavy-duty applications. Weighing 3.05 lbs and measuring 124.0 mm in length, this relay valve is engineered for easy installation, making it a perfect choice for fleet operators looking to maintain or upgrade their braking systems. When it comes to sourcing reliable components, Source One Parts Center is the best choice for genuine Bendix OEM parts, ensuring you receive top-quality products backed by exceptional service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2 PTC
Delivery Port 2
1/2 PTC
Delivery Port 3
1/2 PTC
Delivery Port 4
1/2 PTC
Supply Port 1
1/2-14 NPT
Balance / Primary Service Port
1/4-18 NPT
Control / Secondary Service Port
1/4-18 NPT
Width
101.0 mm (3.98 in)
Height
120.0 mm (4.72 in)
Length
124.0 mm (4.88 in)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 8
3/8-18 NPT
Delivery Port 7
3/8-18 NPT (Plugged)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.05 lb
