DESCRIPTION

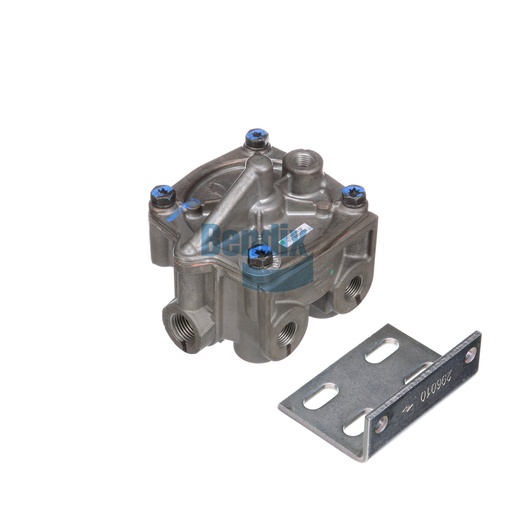

The Bendix Relay Valve is designed for optimal performance in air brake systems, ensuring quick and efficient braking response. This valve plays a crucial role in managing air pressure, allowing the driver to maintain control under demanding conditions. With its compact design and a net weight of 1.3 kg (2.89 lb), this relay valve is engineered to fit seamlessly into various commercial vehicle systems. It delivers reliable performance, helping to prolong the life of your braking components while enhancing overall safety on the road. The precision engineering of this valve ensures that it operates effectively across a range of conditions, making it an ideal choice for heavy-duty applications. Trust Source One Parts Center for authentic Bendix OEM parts, ensuring your vehicle is equipped with the best components available.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
Crack Pressure
0.0 PSI
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
104.0 mm (4.09 in)
Width
114.0 mm (4.49 in)
Height
118.0 mm (4.65 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RD000
Internal Supply Passage to Cover
Yes
Weight
2.89 lb
