801394

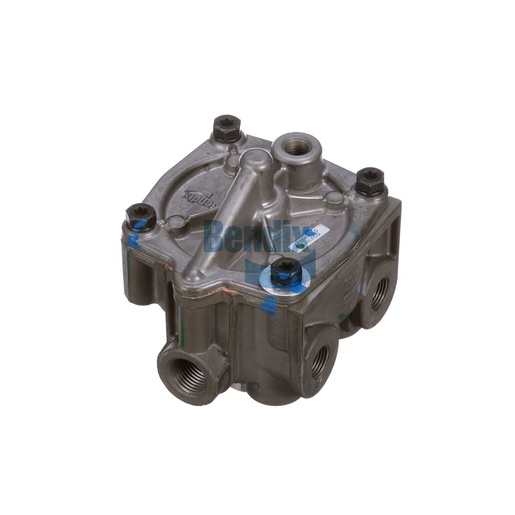

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is engineered to enhance the performance and reliability of your vehicle's braking system. This valve features a body configuration that supports dual supply and multiple delivery ports, allowing for efficient air management within the braking system. With a crack pressure of 0.0 PSI, it ensures that air is delivered promptly when needed, optimizing response times during braking maneuvers. Constructed with high-quality materials, the relay valve operates effectively in extreme conditions, with a maximum operating temperature of 200 °F and a minimum of -40 °F. Weighing approximately 2.38 lbs, it is designed for easy integration into your braking system. The Bendix Relay Valve plays a crucial role in ensuring that your air brake system functions smoothly and efficiently, enhancing overall vehicle safety. For all your genuine Bendix OEM parts, source your needs from Source One Parts Center, where quality assurance is our priority.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Crack Pressure
0.0 PSI
VMRS
013-010-009: Relay Valve - Air Brake
Exhaust Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Country of Origin
Mexico
TMC Washer
RD000
Internal Supply Passage to Cover
Yes
Weight
2.38 lb
