801746

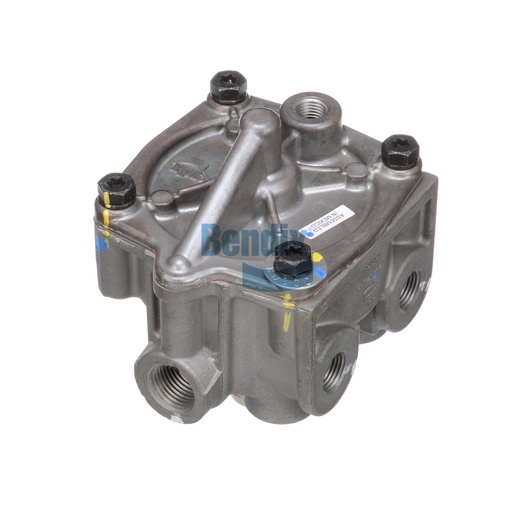

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a critical component in your vehicle’s braking system, optimizing the flow of air to ensure rapid and effective brake actuation. Designed for high performance, this relay valve features a durable construction that withstands the harsh environments faced by commercial vehicles. It provides precise control over air delivery, which is essential for maintaining safety and performance under varying load conditions. The valve's design reduces the risk of leaks and ensures reliable operation, contributing to the overall efficiency of your braking system. Easy to install and maintain, this relay valve is an excellent choice for fleet managers seeking to enhance their vehicles' braking reliability. For those looking for trustworthy and authentic truck parts, Source One Parts Center is the premier source for genuine Bendix OEM components, ensuring your vehicle remains safe and efficient on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Crack Pressure
0.0 PSI
VMRS
013-010-009: Relay Valve - Air Brake
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Barbed Snorkel - 1.00 IN Tube
Country of Origin
Mexico
TMC Washer
RD000
Internal Supply Passage to Cover
Yes
Weight
2.35 lb
