$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

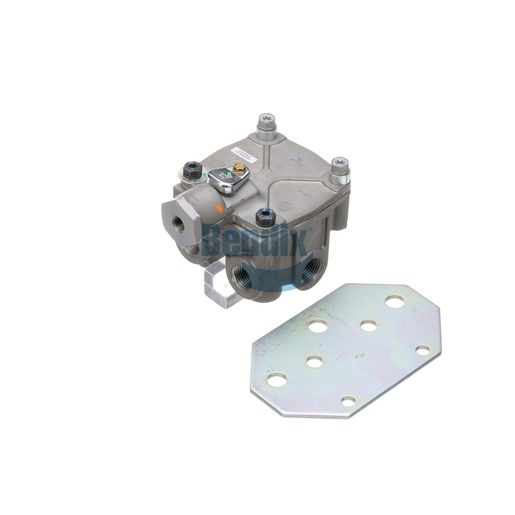

The Bendix Relay Valve is a critical component in air brake systems, designed to ensure responsive and reliable braking performance. This valve efficiently manages air pressure, allowing for precise control of braking actions and enhancing overall vehicle safety. With a compact design and a net weight of 1.7 kg (3.68 lb), it is built to fit seamlessly into your system while providing optimal functionality. This relay valve helps to reduce wear on brake components, ultimately extending their lifespan and ensuring smooth operation during critical moments. Ideal for commercial vehicles, it maintains consistent performance under varying load conditions, making it perfect for the demands of the road. Purchase your Bendix parts from Source One Parts Center, the trusted supplier for genuine OEM components that guarantee performance and reliability.
SPECIFICATIONS
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Width
101.0 mm (3.98 in)
Height
113.0 mm (4.45 in)
Length
138.0 mm (5.43 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Mounting
Ø .472 IN (2x), Ø .550 IN (3x)
Weight
3.68 lb
