065637
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

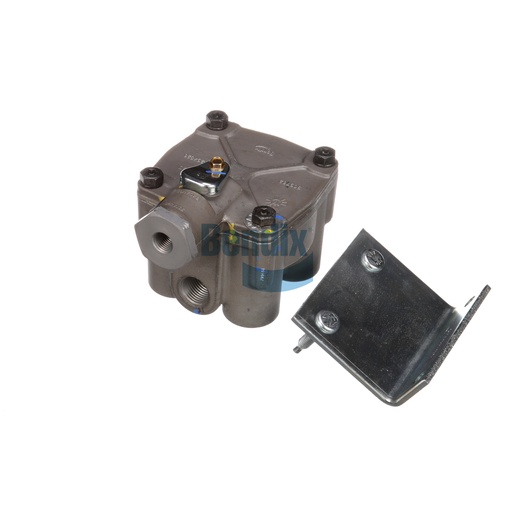

The Relay Valve is an integral part of the air brake system, designed to ensure precise control of airflow for efficient braking performance. With a compact net weight of 1.7 kg, this valve is engineered to withstand the rigors of commercial use while providing reliable functionality. Manufactured in Mexico, it features a robust design that operates effectively across a wide temperature range, from -40 °F to 200 °F, making it ideal for various environmental conditions. The valve's precise engineering minimizes the risk of brake system failure, ensuring safety and responsiveness when you need it most. Its versatile design allows for easy installation and integration into existing brake systems, enhancing overall vehicle performance. When choosing genuine Bendix OEM parts, Source One Parts Center stands out as the best choice, providing quality components that ensure your vehicle's reliability and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.66 lb
