$269.95
$323.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

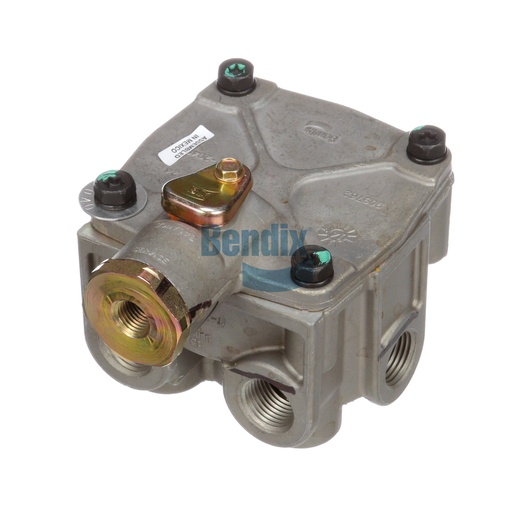

The Bendix Relay Valve is a crucial component in your vehicle’s braking system, designed to enhance braking performance and safety. This high-quality valve is engineered to provide precise control of air flow, ensuring optimal response times during braking. Weighing 1.2 kg, the relay valve is built for heavy-duty applications, making it a reliable choice for commercial vehicles that demand durability and efficiency. Its robust construction allows it to withstand extreme conditions while maintaining peak performance. This relay valve is easy to install, making it a great option for both new builds and replacements. When you purchase from Source One Parts Center, you can be confident that you are getting genuine Bendix OEM parts that meet the highest standards of quality and reliability for your truck.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.54 lb
