$109.95
$131.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

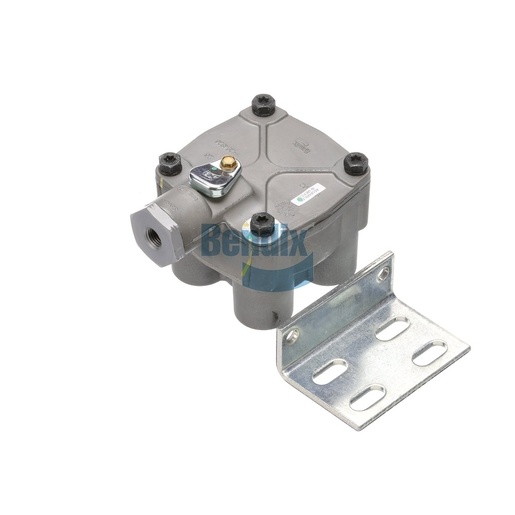

The Bendix Relay Valve is engineered to optimize the air braking system in your commercial vehicle, ensuring enhanced responsiveness and safety. With a robust design that includes a maximum operating temperature of 200°F and a minimum of -40°F, this relay valve is built to perform in extreme conditions. It features a body configuration that supports one supply port and four delivery ports, providing flexibility in installation. The valve's precise operating parameters allow for efficient air flow management, crucial for maintaining brake performance under various load conditions. When looking for reliable Bendix parts, Source One Parts Center is your best option for sourcing authentic OEM components that guarantee the highest quality.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Width
101.0 mm (3.98 in)
Height
113.0 mm (4.45 in)
Length
138.0 mm (5.43 in)
Control Port Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.31 lb
