$109.95
$131.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

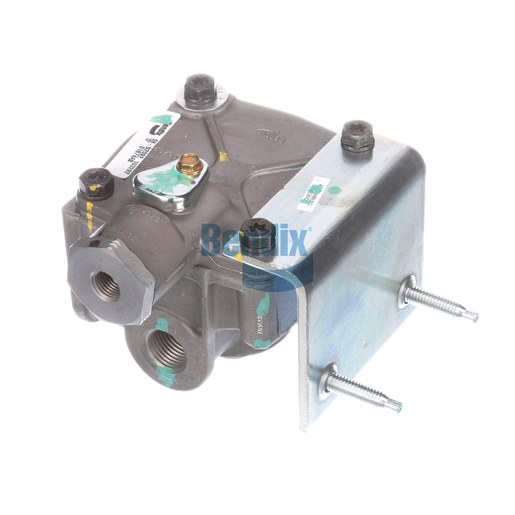

The Bendix Relay Valve is a crucial component within the air brake system, designed to enhance the responsiveness and efficiency of your vehicle's braking operations. This valve regulates the flow of air, ensuring that brakes engage smoothly and effectively when needed. Engineered for durability, it withstands the demanding conditions of commercial vehicle operation, providing reliable performance over time. The valve features multiple ports for flexible installation options, making it suitable for various applications. For sourcing high-quality Bendix OEM parts, Source One Parts Center offers the best selection to keep your commercial vehicles performing at their best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT (Plugged)
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Above Cover
Mounting Bracket Direction
Down
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.6 lb
