DESCRIPTION

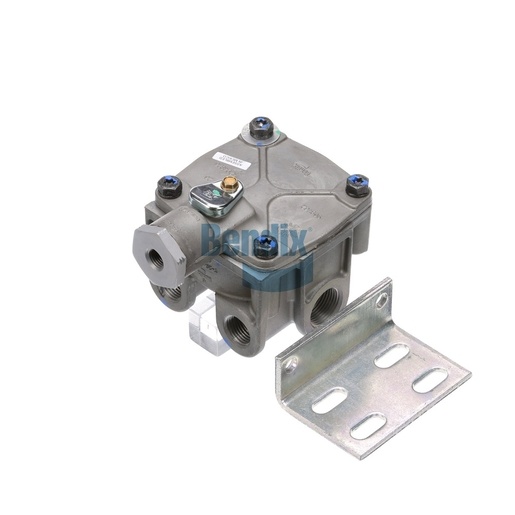

The Bendix Relay Valve is crucial for controlling air flow in your truck's braking system, ensuring that air pressure is accurately distributed to the brakes when needed. This component is engineered for high performance and reliability, providing precise control that enhances the overall safety of your commercial vehicle. Its durable construction allows it to withstand the demands of heavy-duty applications, ensuring that your brakes respond effectively under all driving conditions. With easy installation and maintenance, the Bendix Relay Valve simplifies the upkeep of your braking system, reducing the risk of failure and enhancing vehicle performance. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is the best choice, providing top-quality components that meet stringent industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.33 lb
