103833N

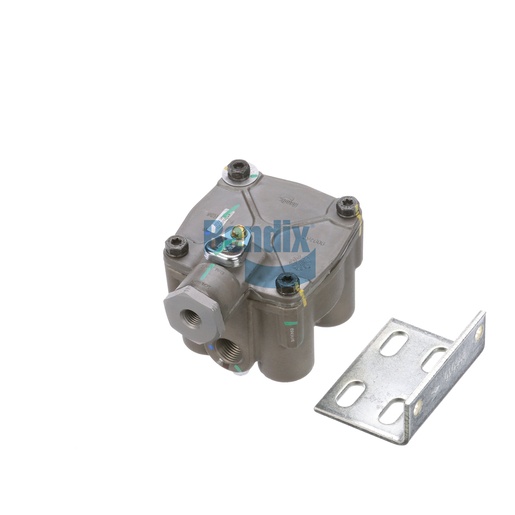

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is an essential component for enhancing the braking efficiency of your commercial vehicle. This valve is meticulously designed to manage air pressure effectively, ensuring that your brake system responds promptly and safely. It features a body configuration that includes one supply and four delivery ports, making it versatile enough for various applications. With a crack pressure of 7.5 PSI, this relay valve delivers consistent performance, even in demanding environments. It can withstand operating temperatures from -40°F to 200°F, making it reliable under extreme conditions. Weighing only 1.5 kg, it is easy to install and integrate into your existing brake system. Investing in this Relay Valve means investing in your vehicle's safety and performance. Choose Source One Parts Center for authentic Bendix OEM parts, ensuring your truck operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
3.35 lb
