Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

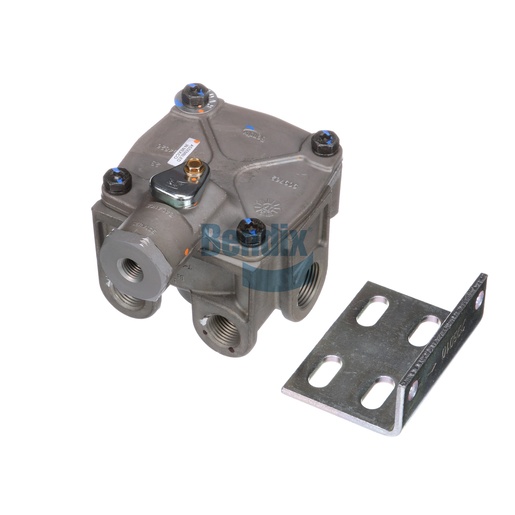

The Bendix Relay Valve is a crucial component of the air brake system, designed to ensure precise control of air distribution for optimal braking performance. Weighing 1.5 kg, this valve is built to endure the rigorous conditions of commercial vehicle operation, providing durability and reliability. Its design features multiple ports for efficient air management, enhancing the responsiveness of the braking system. The relay valve is straightforward to install, making it an essential part of your vehicle's maintenance routine. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering the best in quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
7.5 PSI
Harmonized System (HS) Code
848110,848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV075
Weight
3.34 lb
