106220N
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

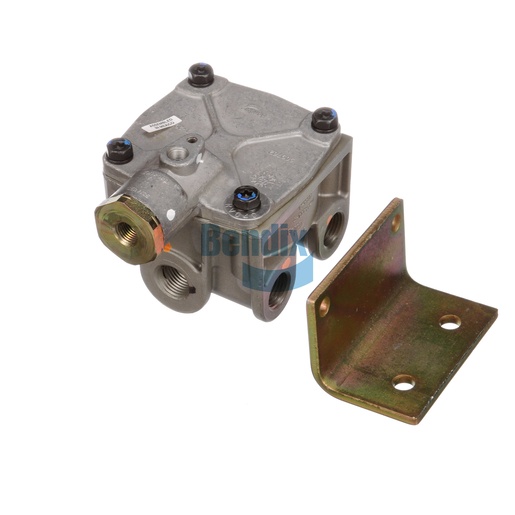

The Relay Valve is an essential component in the air brake system, providing efficient control of air pressure to the brakes. This valve is designed for durability, featuring a robust construction that ensures long-lasting performance even under the toughest conditions. With a net weight of 1.6 kg and a crack pressure of 4.0 PSI, it effectively regulates air flow to enhance braking efficiency and responsiveness. The relay valve's compact design allows for easy installation within the vehicle's braking system, making it a practical choice for any commercial truck. For sourcing genuine Bendix OEM parts, Source One Parts Center is the ideal destination, ensuring you receive top-quality components for your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Mounting
Ø .41 IN (2x)
Weight
3.44 lb
