106313
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

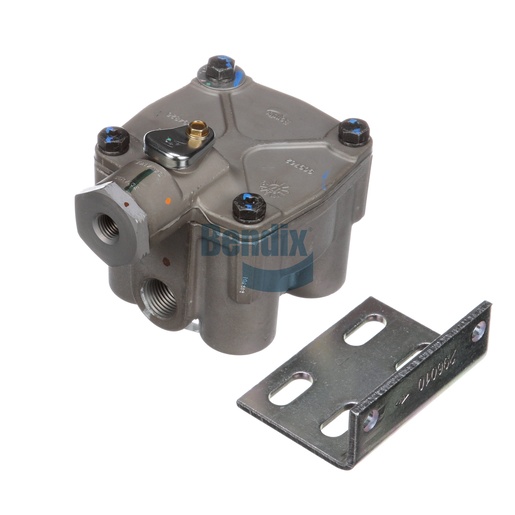

The Bendix Relay Valve is a key component in the air brake system, engineered for precise control and efficient operation of air brakes in commercial vehicles. This relay valve, weighing 1.6 kg, is designed to facilitate smooth modulation of air pressure, improving overall braking performance. Its robust construction ensures reliability under demanding conditions, making it suitable for heavy-duty applications. By utilizing this relay valve, you enhance the responsiveness of your braking system, contributing to safer driving conditions. For genuine Bendix OEM parts, Source One Parts Center is your best choice, ensuring you receive high-quality components that stand the test of time.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.48 lb
