106325N

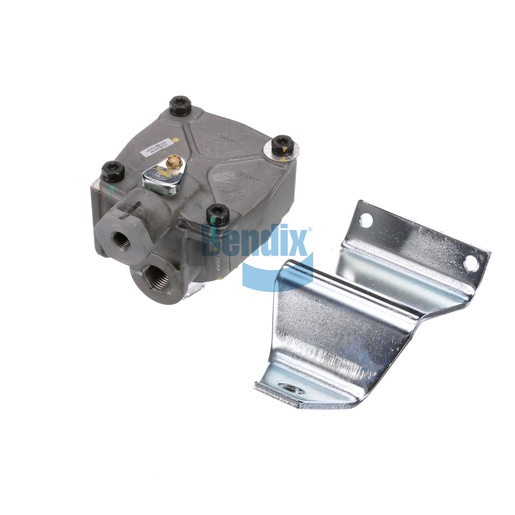

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a vital component in the air brake system, designed to enhance the responsiveness and efficiency of braking operations in commercial vehicles. This valve features a durable construction that ensures long-lasting performance, even in extreme temperature ranges from -40 °F to 200 °F. Its precise design allows for effective modulation of air pressure, improving the overall brake response time and ensuring a smoother driving experience. The relay valve's compact size and lightweight design facilitate easy installation and integration into existing brake systems, making it a perfect choice for fleet operators looking to enhance their vehicles' braking performance. By utilizing the Bendix Relay Valve, operators can trust in the reliability and safety of their braking systems. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, providing quality products and exceptional service for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT (Plugged)
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Mounting Bracket Location
Above Cover
Mounting Bracket Direction
Down
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Mounting
Ø .656 IN
Weight
3.68 lb
