5012257N

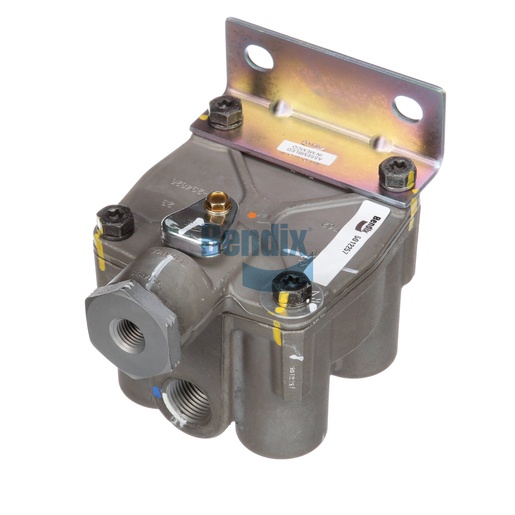

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a vital component in air brake systems, responsible for controlling the flow of air to various brake components. Its precise operation is crucial for maintaining optimal braking performance and safety in commercial vehicles. Designed for durability, this relay valve is built to withstand the demands of heavy-duty applications, ensuring reliable function over time. The valve features multiple ports for flexible installation options, making it suitable for a wide array of vehicle configurations. By investing in genuine Bendix OEM parts, you can trust that your braking system will operate reliably and efficiently. Source One Parts Center is the premier source for authentic Bendix parts, providing you with the assurance of quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.42 IN x .49 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Mounting Bracket Location
Above Cover
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
3.1 lb
