$134.95
$161.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

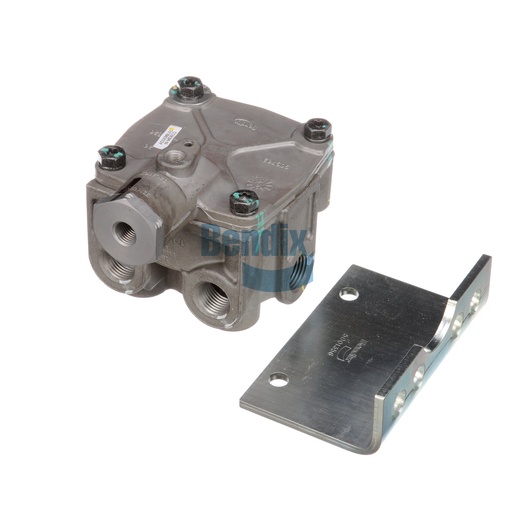

The Relay Valve is an integral part of the air brake system, ensuring efficient air flow and brake actuation. Built with precision engineering, this valve features multiple delivery ports that allow for effective distribution of air pressure to various brake components, significantly enhancing braking performance. Designed to operate efficiently across a wide temperature range, it can withstand extreme conditions, making it suitable for heavy-duty applications. The relay valve's configuration promotes quick response times, which is crucial for maintaining safety during operation. With features such as a dust shield to prevent contamination, this valve is built for longevity and reliability. For sourcing genuine Bendix OEM parts, Source One Parts Center is the ultimate destination, providing top-grade components for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Mounting
Ø .531 IN (4x)
Weight
3.59 lb
