800563

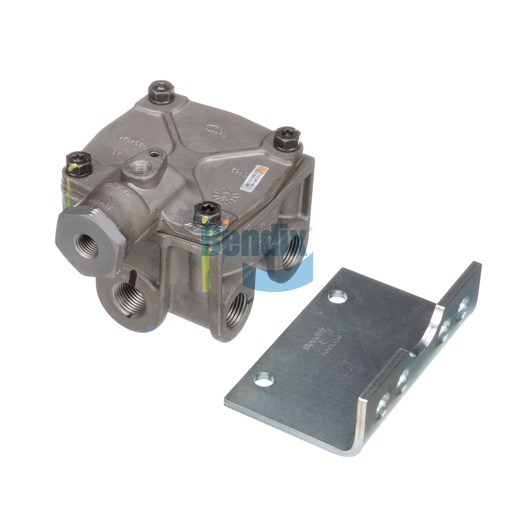

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix relay valve is an essential part of your air brake system, expertly engineered to ensure effective communication between the foot brake and the service brakes. This valve plays a crucial role in controlling the flow of air, allowing for rapid response times and improved braking efficiency. With a maximum operating temperature of 200°F and a design that withstands extreme conditions, the relay valve guarantees durability and reliability in demanding environments. Weighing only 1.6 kg, it is lightweight yet sturdy, making installation straightforward and hassle-free. By using this relay valve, you can enhance the overall performance of your braking system, ensuring that you maintain safety and control on the road. For authentic Bendix OEM parts, Source One Parts Center is the best place to shop, as they provide top-notch components that you can trust for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Mounting
Ø .531 IN (4x)
Weight
3.62 lb
