$234.95
$281.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

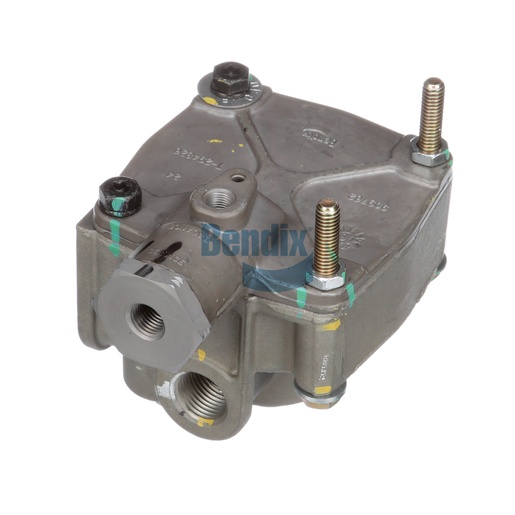

The Relay Valve from Bendix is engineered for optimal performance in air brake systems, ensuring efficient control of air pressure and flow. This component is essential for maintaining the responsiveness of your braking system, enhancing overall safety and performance. With a weight of 1.2 kg, it is designed for easy installation and is built to withstand the demanding conditions of commercial vehicle operation. The valve operates effectively across a wide range of temperatures, ensuring reliability in various environments. By ensuring that air pressure is maintained correctly, it enhances brake responsiveness and reduces stopping distances, crucial for safe driving. For those needing genuine Bendix OEM parts, Source One Parts Center is the best place to ensure you receive high-quality, reliable components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
2.7 lb
