$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

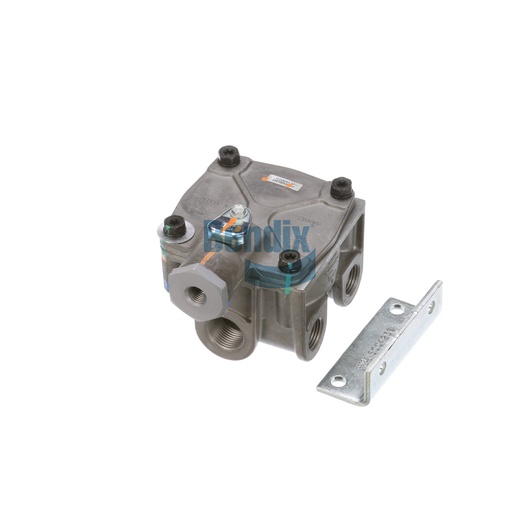

The Relay Valve from Bendix is an essential component for ensuring optimal air brake performance in commercial vehicles. Designed for reliability, this valve features a robust body configuration with dual supply and delivery ports, ensuring that air pressure is effectively managed, thus improving the overall braking efficiency. Its advanced design allows for a crack pressure of just 4.0 PSI, ensuring rapid response times during braking, making it ideal for heavy-duty applications. The Relay Valve operates seamlessly in extreme temperatures, capable of functioning in conditions ranging from -40°F to 200°F. With a net weight of 1.4 kg, this durable valve is easy to install, allowing for a straightforward replacement process, which minimizes downtime. For fleet operators looking to enhance safety and performance in their vehicles, investing in quality parts like the Bendix Relay Valve is crucial. Source One Parts Center is your go-to destination for genuine Bendix OEM parts, ensuring you get the best quality for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Mounting
Ø .325 IN (2x)
Weight
3.04 lb
