801055
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

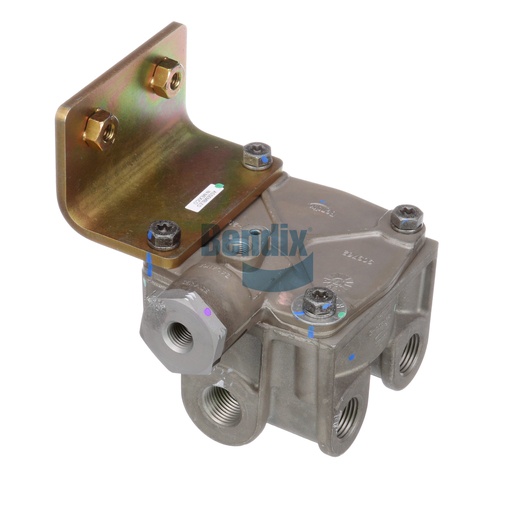

The Bendix Relay Valve is an indispensable part of any air brake system, expertly designed to regulate air pressure for optimal braking performance. With a robust configuration of 2 SUP and 2 DEL ports, it facilitates efficient air distribution, ensuring that your vehicle responds promptly to braking commands. This relay valve operates effectively in extreme temperatures, from -40°F to 200°F, making it suitable for diverse operating conditions. Weighing 1.9 kg, it is both durable and easy to install, fitting seamlessly into various brake systems. The valve's design includes multiple ports for adaptability, ensuring it meets your specific vehicle requirements. Choosing the Bendix Relay Valve means investing in safety and performance, enhancing the overall reliability of your braking system. For authentic Bendix OEM parts like this relay valve, Source One Parts Center is your best choice, providing top-tier components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Mounting Bracket Location
Above Cover
Exhaust Port
Dust Shield
Mounting
M8 x 1.25-5H Nut (2x)
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
4.21 lb
