$174.95
$209.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

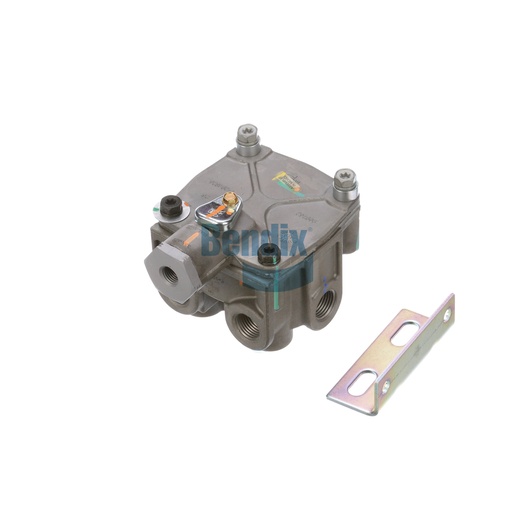

The Bendix Relay Valve is a sophisticated component that plays a crucial role in the air brake system of your commercial vehicle. This valve is designed to regulate air flow and pressure, ensuring that your brakes respond promptly and effectively under varying conditions. With a maximum operating temperature of 200 °F, this relay valve is engineered to perform reliably even in the most demanding environments, contributing to the overall safety and efficiency of your vehicle. Its lightweight design, weighing 1.4 kg, allows for easy installation without compromising functionality. The valve is constructed with high-quality materials to withstand wear and tear, ensuring long-lasting performance. For genuine Bendix OEM parts that guarantee quality and reliability, Source One Parts Center is your best resource, providing the essential components needed for your commercial vehicle's optimal operation.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3 lb
