801590
Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

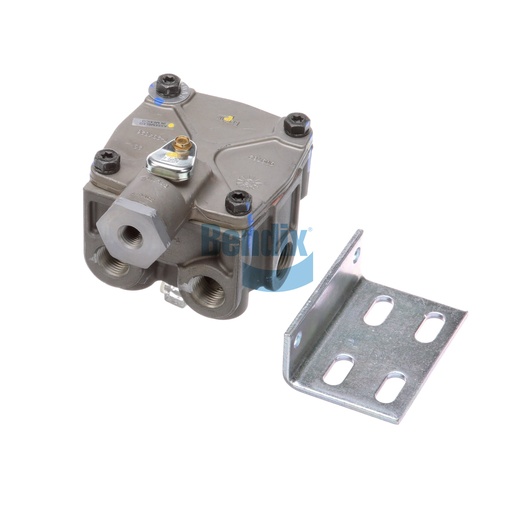

The Bendix Relay Valve is crucial for efficient air brake operation, allowing for rapid response and effective control of brake pressure in commercial vehicles. This relay valve is designed with precision engineering to ensure reliability and optimal performance, maximizing the safety and efficiency of your braking system. Weighing just 1.4 kg (3.17 lb), it features robust construction that can withstand heavy-duty use and harsh conditions. The valve's design includes multiple ports for versatile applications, making it adaptable to various vehicle setups. With its ability to enhance braking response times, the relay valve is a smart investment for any fleet. For those seeking authentic Bendix parts, Source One Parts Center is the leading supplier for genuine OEM components suited for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.17 lb
