$139.95
$167.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

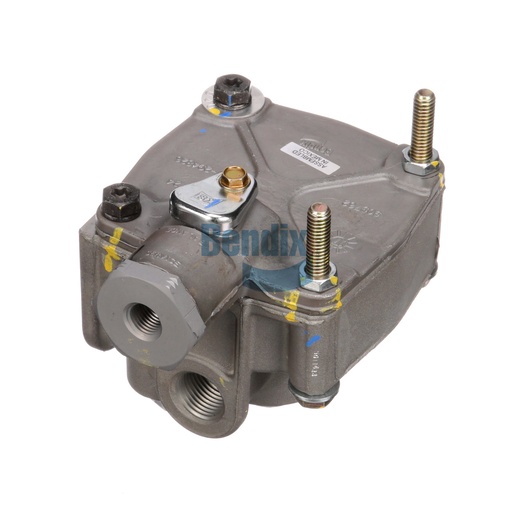

The Bendix Relay Valve is an essential component for any air brake system, providing reliable control of air pressure to ensure optimal braking performance. With a body configuration of 2 SUP / 4 DEL, it enhances the efficiency of air distribution, allowing for quicker response times and improved braking power. Designed to operate within a temperature range of -40°F to 200°F, this relay valve is built to withstand the rigors of commercial vehicle operation, ensuring durability and longevity. Its lightweight design, weighing only 1.2 kg, simplifies installation while maintaining robust functionality. The relay valve also features multiple ports for flexible configuration, making it adaptable to a variety of braking systems. Whether you are managing a fleet or maintaining a single vehicle, this relay valve enhances safety and performance. For genuine Bendix OEM parts like this Relay Valve, Source One Parts Center is your trusted supplier, ensuring you get the best quality for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Mounting Bracket Direction
Up
Weight
2.62 lb
