$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

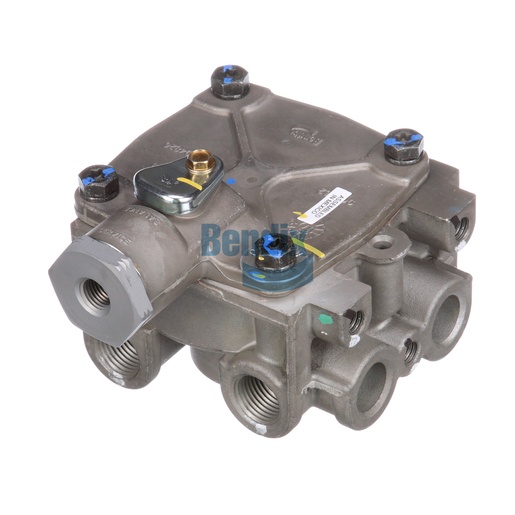

The Relay Valve from Bendix is an essential component that ensures the efficient operation of the air brake system in commercial vehicles. This high-quality valve is designed to maintain optimal pressure levels, allowing for quick and reliable brake application in critical situations. With a robust construction and a maximum operating temperature of 200 °F, it is engineered to withstand demanding environments while providing consistent performance. The valve features multiple ports for versatile installation, making it suitable for various vehicle configurations. Its crack pressure of 4.0 PSI ensures that it activates promptly, enhancing the overall safety and responsiveness of the braking system. For genuine Bendix OEM parts, you can count on Source One Parts Center to deliver the best products tailored for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Delivery Port 5
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Width
101.0 mm (3.98 in)
Height
113.0 mm (4.45 in)
Length
138.0 mm (5.43 in)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 5 DEL (5H)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Delivery Port 3
Cored Closed
Delivery Port 4
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.93 lb
