802384

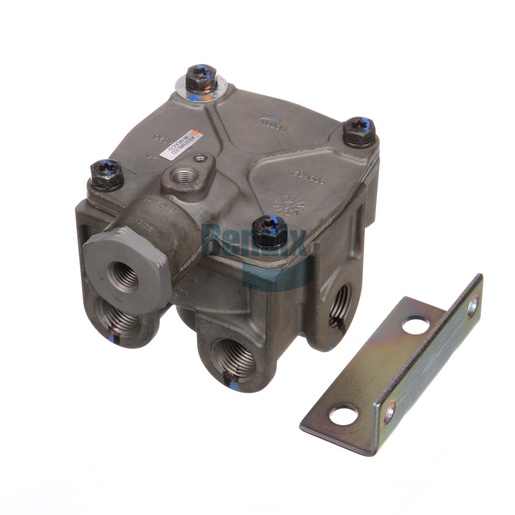

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an integral component in ensuring responsive and reliable braking for your commercial vehicle. This valve facilitates the quick and efficient transfer of air between various brake components, allowing for smooth operation and enhanced safety on the road. Designed to handle a range of temperatures and pressures, this valve is built to last, providing consistent performance even under heavy loads. Its straightforward installation process makes it an excellent choice for fleet maintenance and repairs. By effectively managing air pressure, the relay valve helps to optimize the performance of your braking system, reducing wear on other components and improving overall safety. Source One Parts Center is proud to offer genuine Bendix products, ensuring that you receive high-quality parts that are essential for your commercial vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.42 IN x .49 IN Slot (2x)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.95 lb
