802522

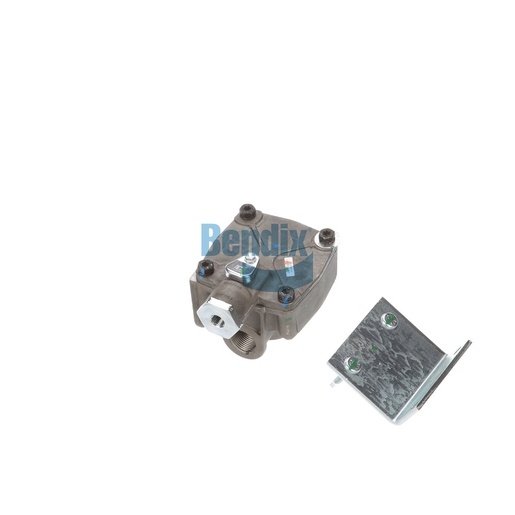

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve from Bendix is a crucial component in your vehicle's braking system, designed to control air flow and pressure for efficient brake application. This valve is engineered for reliability and precision, ensuring that your braking system responds effectively under varying conditions. With a compact design and weighing only 1.6 kg, it fits seamlessly into your braking system, allowing for easy installation and maintenance. The valve is built to operate within a wide temperature range, making it suitable for diverse environments and applications. By maintaining proper air pressure, the relay valve contributes to enhanced braking performance and safety. For those in search of high-quality OEM parts, Source One Parts Center is the best resource for genuine Bendix products, ensuring you receive the best for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port 1
3/4-14 NPT
Supply Port 2
3/4-14 NPT
Crack Pressure
4.0 PSI
Mounting
5/16-18 UNC-2A Stud (2x)
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.51 lb
