K019662

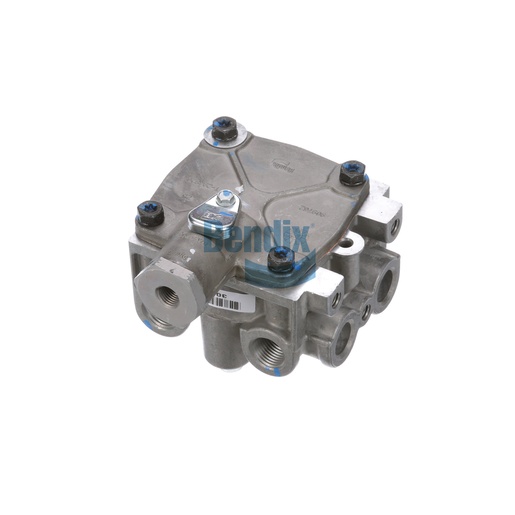

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a key component in your vehicle's air brake system, designed to optimize braking performance and control. Weighing 4.5 kg (9.99 lb), this valve facilitates the efficient management of air pressure, ensuring quick and responsive braking when needed. Its robust construction and precise engineering allow for reliable operation under high-stress conditions, making it essential for heavy-duty applications. This relay valve plays a critical role in enhancing the safety and efficiency of your braking system. For the best selection of Bendix OEM parts, Source One Parts Center is your trusted partner, delivering quality components that enhance the performance of your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 7
3/8-18 NPT
Delivery Port 8
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
9.99 lb
