K021767

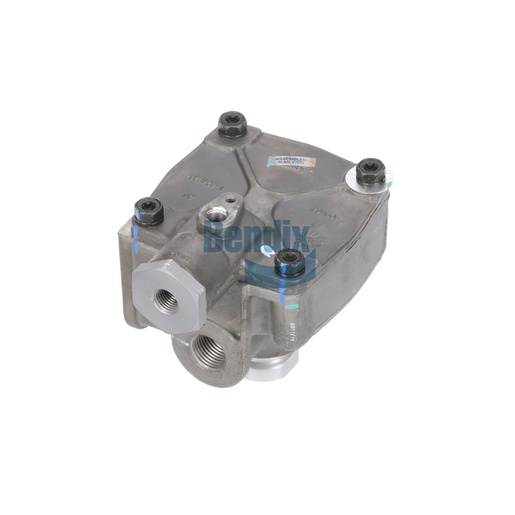

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is a critical component for the air brake system, designed to enhance the efficiency and effectiveness of your vehicle's braking capabilities. This high-performance valve, weighing 1.2 kg, is engineered to operate under various temperatures, ensuring reliable function regardless of driving conditions. With its precise design and durable construction, this relay valve ensures that air pressure is appropriately managed throughout your braking system, contributing to safer and more responsive braking. Regular maintenance and timely replacement of relay valves help in achieving optimal performance and vehicle safety. For the best in genuine Bendix OEM parts, Source One Parts Center is your definitive source, guaranteeing quality and performance for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.74 lb
