K021768

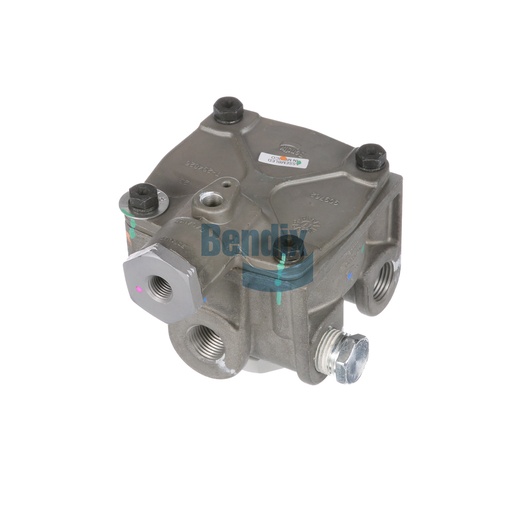

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a key component in the braking system of commercial vehicles, designed to regulate air pressure and ensure effective brake operation. This valve features a robust design with a maximum operating temperature of 200 °F and a crack pressure of 5.5 PSI, making it reliable under various conditions. Weighing only 1.5 kg, the R-14 configuration is engineered for easy installation and maintenance, contributing to the overall efficiency of the air brake system. For those looking for dependable performance, Source One Parts Center is the premier destination for authentic Bendix OEM parts that guarantee the safety and functionality of your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Exhaust Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Delivery Port 2
1/2-14 NPT (Plugged)
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Control Port Orientation (CW from Front Face)
270°
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.33 lb
