K036175

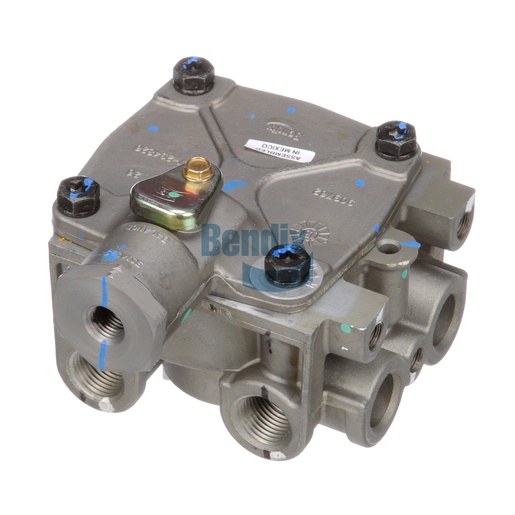

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential component in air brake systems, designed to enhance the efficiency and responsiveness of braking in commercial vehicles. This valve is engineered to regulate air pressure effectively, ensuring optimal brake function under varying load conditions. With a compact design weighing just under 3 lbs, it is easy to install and integrate into existing systems, minimizing downtime during maintenance. The relay valve's robust construction ensures reliability and longevity, even in demanding environments. Its precise engineering meets strict OEM specifications, providing peace of mind for fleet operators. For sourcing genuine Bendix OEM parts, Source One Parts Center is the best destination, offering a wide range of high-quality components to keep your vehicles operating safely and efficiently.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Delivery Port 5
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Body Configuration
2 SUP / 5 DEL (5H)
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Delivery Port 3
Cored Closed
Delivery Port 4
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.97 lb
