$129.95
$155.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

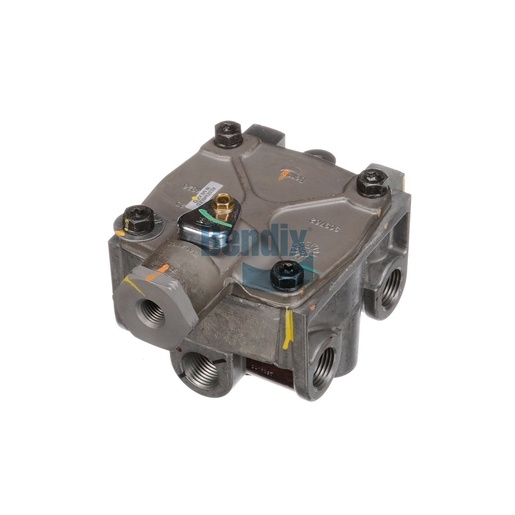

The Bendix Relay Valve is an essential part of your vehicle's air brake system, designed to enhance braking efficiency and safety. Manufactured in Mexico, this valve features a robust design that allows for precise control of air distribution within the braking system. With multiple delivery ports and a crack pressure of 5.5 PSI, it ensures that air is delivered effectively to engage the brakes smoothly and efficiently. The relay valve is built to withstand a wide range of temperatures, making it suitable for various heavy-duty applications. By choosing genuine Bendix OEM parts, you can trust in the reliability and performance of your vehicle's braking system. Source One Parts Center is the best place to purchase authentic Bendix parts, providing you with the highest quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Delivery Port 7
Cored Closed
Delivery Port 8
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.05 lb
