$93.95
$112.74
FINAL SALE. No returns or exchanges.

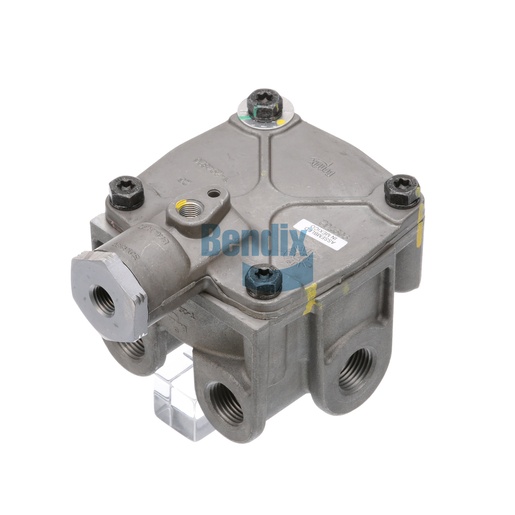

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is a crucial component in the air brake system, ensuring efficient and precise brake application. This Bendix product is designed to maintain optimal air pressure levels, enhancing the braking performance of your commercial vehicle. Featuring a durable construction that withstands extreme conditions, it guarantees reliability and longevity in demanding environments. With a crack pressure of 4.0 PSI and a maximum operating temperature of 200 °F, this relay valve is engineered for superior performance and safety. Its easy installation and compatibility with various systems make it a popular choice among truck operators. For the best in genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and service meet.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.61 lb
