K053718

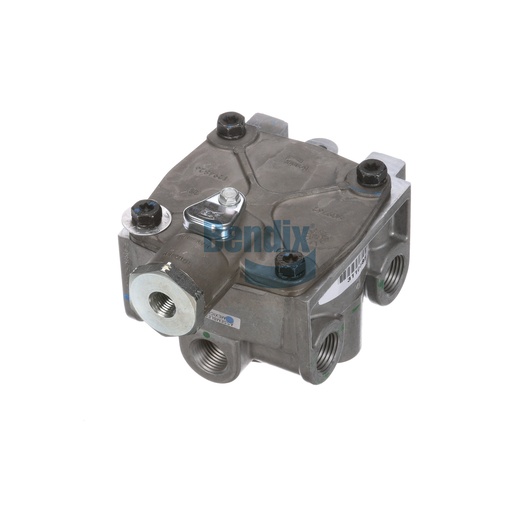

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Relay Valve is an essential part of your truck's air brake system, designed to enhance braking efficiency and reliability. This valve plays a crucial role in controlling air pressure and distributing it to the brake chambers, ensuring optimal performance under varying conditions. With a robust design and high-quality materials, it can withstand the demands of heavy-duty use, providing peace of mind for fleet operators. The relay valve's compact design simplifies installation and maintenance, making it an excellent choice for those looking to enhance their braking system's performance. When purchasing genuine Bendix OEM parts, Source One Parts Center is your trusted source, committed to delivering the best products for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Delivery Port 7
Cored Closed
Delivery Port 8
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.99 lb
