K060354

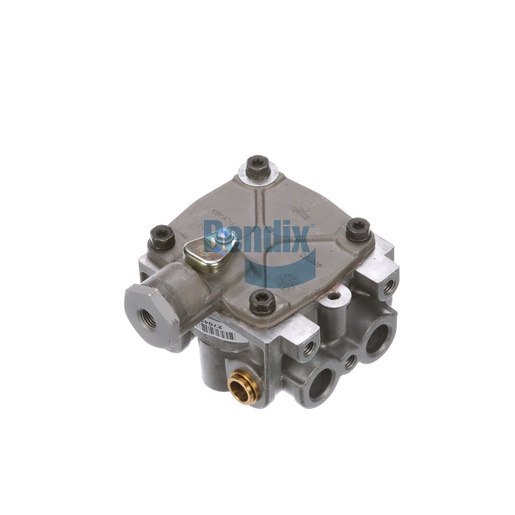

Relay Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Relay Valve is an essential component in your truck's air brake system, designed to ensure precise control of brake pressure and enhance overall braking efficiency. This valve features a robust design that can withstand extreme temperatures, making it suitable for various operational environments. With multiple delivery ports, it supports a wide range of applications, ensuring that your braking system functions smoothly and effectively. The valve's crack pressure of 5.5 PSI allows for quick response times, enhancing safety during braking maneuvers. By maintaining optimal pressure distribution across the system, this relay valve contributes to improved vehicle control and stability. For the best in genuine Bendix OEM parts, look to Source One Parts Center, where quality assurance and customer satisfaction are our top priorities.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2 PTC
Delivery Port 2
1/2 PTC
Delivery Port 3
1/2 PTC
Delivery Port 4
1/2 PTC
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Balance / Primary Service Port
1/8-27 NPT (with Cover)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
200 °F (93 °C)
Mounting
3/8-16 UNC-2B (3x)
Delivery Port 8
3/8-18 NPT
Delivery Port 7
3/8-18 NPT (Plugged)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Control Port Orientation (CW from Front Face)
90°
Delivery Port 5
Cored Closed
Delivery Port 6
Cored Closed
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.23 lb
